MovePathCursor()

Syntaxe

MovePathCursor(X.d, Y.d [, Options])
Description
Déplace le curseur du chemin de dessin vectoriel vers un nouvel emplacement.

Arguments

X.d, Y.d La nouvelle position du curseur dans le chemin.
Options (optionnel) Peut prendre l'une des valeurs suivantes:
  #PB_Path_Default : Position absolue (par défaut)
  #PB_Path_Relative: Position relative à la dernière position.

Valeur de retour

Aucune.

Remarques

En plus du déplacement du curseur, cette fonction commence aussi une nouvelle figure dans le chemin, ce qui signifie qu'un appel à ClosePath() va dessiner une ligne en arrière à cet endroit.

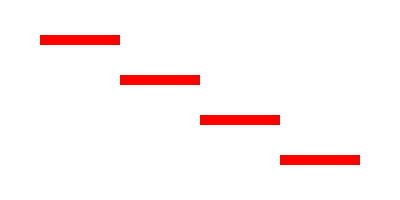

Exemple

  If OpenWindow(0, 0, 0, 400, 200, "VectorDrawing", #PB_Window_SystemMenu | #PB_Window_ScreenCentered)
    CanvasGadget(0, 0, 0, 400, 200)

    If StartVectorDrawing(CanvasVectorOutput(0))

      MovePathCursor(40, 40)
      For i = 1 To 4
        AddPathLine(80, 0, #PB_Path_Relative)
        MovePathCursor(0, 40, #PB_Path_Relative)
      Next i

      VectorSourceColor(RGBA(255, 0, 0, 255))
      StrokePath(10)

      StopVectorDrawing()
    EndIf

    Repeat
      Event = WaitWindowEvent()
    Until Event = #PB_Event_CloseWindow
  EndIf

Voir aussi

ClosePath(), AddPathLine(), FillPath(), StrokePath()

OS Supportés

Tous
