VectorSourceImage()

Syntax

VectorSourceImage(ImageID [, Alpha [, Width.d, Height.d [, Flags]]])

Selects an image as the source for vector drawing operations such as FillPath() or StrokePath(). These functions will apply pixels from the specified image to the drawing output wherever they draw something.

Parameters

ImageID	Specifies the image to use as the source. Use the ImageID() function to get this value from an image.
Alpha (optional)	Specifies an optional alpha transparency to apply to the source image. This transparency is applied in addition to any transparent pixels already present in the source image. The default is value is 255 (no additional transparency).
Width.d, Height.d (optional)	Specifies an optional with and height for the image. The values are interpreted in terms of the #PB_Corrdinate_Source coordinate system. If no width and height are specified, then the dimensions of the source image (in pixels) are converted into the unit of the vector drawing output and used (i.e. the image has its original size).
Flags (optional)	Can be one of the following values: #PB_VectorImage_Default: Areas outside of the source image are transparent (default) #PB_VectorImage_Repeat : The source image is repeated to cover the entire drawing area

Return value

None.

Remarks

See the vectordrawing overview for an introduction to the different coordinate systems.

By transforming the #PB_Coordinate_Source coordinate system, the used source image can be transformed (moved, rotated, stretched, skewed). See the second example below for a demonstration.

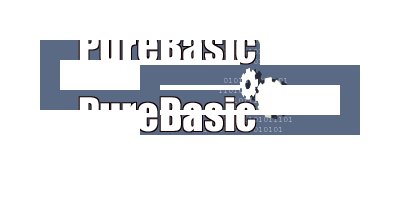

Example: Repeated source image

  If OpenWindow(0, 0, 0, 400, 200, "VectorDrawing", #PB_Window_SystemMenu | #PB_Window_ScreenCentered)
    CanvasGadget(0, 0, 0, 400, 200)

    LoadImage(0, #PB_Compiler_Home + "examples/Sources/Data/PureBasicLogo.bmp")

    If StartVectorDrawing(CanvasVectorOutput(0))

      AddPathBox(50, 50, 200, 50)
      AddPathBox(150, 75, 200, 50)

      VectorSourceImage(ImageID(0), 255, ImageWidth(0), ImageHeight(0), #PB_VectorImage_Repeat)
      StrokePath(20)

      StopVectorDrawing()
    EndIf

    Repeat
      Event = WaitWindowEvent()
    Until Event = #PB_Event_CloseWindow
  EndIf

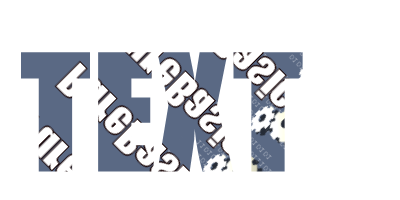

Example: Rotated and flipped source image

  If OpenWindow(0, 0, 0, 400, 200, "VectorDrawing", #PB_Window_SystemMenu | #PB_Window_ScreenCentered)
    CanvasGadget(0, 0, 0, 400, 200)

    LoadImage(0, #PB_Compiler_Home + "examples/Sources/Data/PureBasicLogo.bmp")
    LoadFont(0, "Impact", 20, #PB_Font_Bold)

    If StartVectorDrawing(CanvasVectorOutput(0))

      FlipCoordinatesY(50, #PB_Coordinate_Source)
      RotateCoordinates(50, 50, -45, #PB_Coordinate_Source)
      VectorSourceImage(ImageID(0), 255, ImageWidth(0), ImageHeight(0), #PB_VectorImage_Repeat)

      VectorFont(FontID(0), 150)
      MovePathCursor(20, 20)
      DrawVectorText("TEXT")

      StopVectorDrawing()
    EndIf

    Repeat
      Event = WaitWindowEvent()
    Until Event = #PB_Event_CloseWindow
  EndIf

See Also

VectorSourceColor(), VectorSourceLinearGradient(), VectorSourceCircularGradient()

Supported OS

All
