ScrollBarGadget()

Syntax

Result = ScrollBarGadget(#Gadget, x, y, Width, Height, Minimum, Maximum, PageLength [, Flags])
Description
Creates a scrollbar gadget in the current GadgetList.

Parameters

#Gadget A number to identify the new gadget. #PB_Any can be used to auto-generate this number.
x, y, Width, Height The position and dimensions of the new gadget.
Minimum, Maximum The range of values that the scrollbar can take. These values should be between 0 and 10,000 to avoid limitations on some operating systems.
PageLength The amount of values that are part of the current displayed "page".

For example you can have a picture which is 100 pixels width and you only see 25 pixels. What you see is a called a 'page', in this example, the page length will be 25, the Minimum will be 0 and the Maximum will be 100.
Flags (optional) Flags to modify the gadget behavior. It can be a combination of the following values:
  #PB_ScrollBar_Vertical : The scrollbar is vertical (instead of horizontal, which is the default).

Return value

Returns nonzero on success and zero on failure. If #PB_Any was used as the #Gadget parameter then the return-value is the auto-generated gadget number on success.

Remarks

A 'mini help' can be added to this gadget using GadgetToolTip().

The following functions can be used to act on this gadget:

- GetGadgetState(): Returns the current slider position (value between 'Minimum' and 'Maximum - PageLength + 1' range).
- SetGadgetState(): Changes the current slider position.
- GetGadgetAttribute(): With one of the following attributes:
  #PB_ScrollBar_Minimum   : Returns the minimum scroll position.
  #PB_ScrollBar_Maximum   : Returns the maximum scroll position.
  #PB_ScrollBar_PageLength: Returns the PageLength value.
- SetGadgetAttribute(): With one of the following attributes:
  #PB_ScrollBar_Minimum   : Changes the minimum scroll position.
  #PB_ScrollBar_Maximum   : Changes the maximum scroll position.
  #PB_ScrollBar_PageLength: Changes the PageLength value.
An event is triggered when it's used. See examples below.

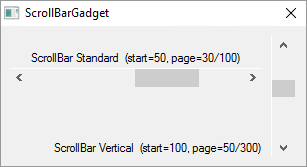

Example

  If OpenWindow(0, 0, 0, 305, 140, "ScrollBarGadget", #PB_Window_SystemMenu | #PB_Window_ScreenCentered)
    TextGadget       (2,  10, 25, 250,  20, "ScrollBar Standard  (start=50, page=30/100)",#PB_Text_Center)
    ScrollBarGadget  (0,  10, 42, 250,  20, 0, 100, 30)
    SetGadgetState   (0,  50)   ; set 1st scrollbar (ID = 0) to 50 of 100
    TextGadget       (3,  10,115, 250,  20, "ScrollBar Vertical  (start=100, page=50/300)",#PB_Text_Right)
    ScrollBarGadget  (1, 270, 10,  25, 120 ,0, 300, 50, #PB_ScrollBar_Vertical)
    SetGadgetState   (1, 100)   ; set 2nd scrollbar (ID = 1) to 100 of 300
    Repeat : Until WaitWindowEvent() = #PB_Event_CloseWindow
  EndIf

Example: ScrollBar events

  Procedure BindHScrollDatas()
    SetWindowTitle(0, "ScrollBarGadget (" + GetGadgetState(0) + ")" )
  EndProcedure

  Procedure BindVScrollDatas()
    SetWindowTitle(0, "ScrollBarGadget (" + GetGadgetState(1) + ")" )
  EndProcedure


  If OpenWindow(0, 0, 0, 400, 400, "ScrollBarGadget", #PB_Window_SystemMenu | #PB_Window_ScreenCentered)
    TextGadget       (2,  10, 25, 350,  30, "ScrollBar Standard  (start = 50, page = 30/100)")
    ScrollBarGadget  (0,  10, 50, 350,  20, 0, 100, 30)
    SetGadgetState   (0,  50)   ; set 1st scrollbar (ID = 0) to 50 of 100
    TextGadget       (3,  10, 120, 350,  30, "ScrollBar vertical  (start = 100, page = 50/300)")
    ScrollBarGadget  (1, 175, 160,  25, 120 ,0, 300, 50, #PB_ScrollBar_Vertical)
    SetGadgetState   (1, 100)   ; set 2nd scrollbar (ID = 1) to 100 of 300

    BindGadgetEvent(0, @ BindHScrollDatas())
    BindGadgetEvent(1, @ BindVScrollDatas())

    Repeat
      Select WaitWindowEvent()
        Case  #PB_Event_CloseWindow
          End
        Case  #PB_Event_Gadget
          Select EventGadget()
            Case 0
              MessageRequester("Info","The ScrollBar 0 has been used ! (" + GetGadgetState(0) +
                                      ")" ,#PB_MessageRequester_Ok)
            Case 1
              MessageRequester("Info","The ScrollBar 1 has been used ! (" + GetGadgetState(1) +
                                      ")" ,#PB_MessageRequester_Ok)

          EndSelect
      EndSelect
    ForEver
  EndIf

See Also

GetGadgetState(), SetGadgetState(), GetGadgetAttribute(), SetGadgetAttribute(), ScrollAreaGadget()

Supported OS

All
