ScrollAreaGadget()

Syntax

Result = ScrollAreaGadget(#Gadget, x, y, Width, Height, ScrollAreaWidth, ScrollAreaHeight [, ScrollStep [, Flags]])
Description
Creates a ScrollArea gadget in the current GadgetList. It is a container for other gadgets with a scrollable area.

Parameters

#Gadget A number to identify the new gadget. #PB_Any can be used to auto-generate this number.
x, y, Width, Height The position and dimensions of the new gadget.
ScrollAreaWidth, ScrollAreaHeight The dimensions of the scrollable area inside the gadget. These can also be smaller than the outer dimensions, in this case scrolling will be disabled. (MS Windows only: These are limited to 32 000 pixels)
ScrollStep (optional) The amount of pixels to scroll when the user presses the scroll bar arrows.
Flags (optional) Flags to modify the gadget behavior. It can be a combination of the following values:
  #PB_ScrollArea_Flat       : Flat frame
  #PB_ScrollArea_Raised     : Raised frame
  #PB_ScrollArea_Single     : Single sunken frame
  #PB_ScrollArea_BorderLess : Without any border
  #PB_ScrollArea_Center     : If the inner size is smaller than the outer, the inner area is automatically centered.

Return value

Returns nonzero on success and zero on failure. If #PB_Any was used as the #Gadget parameter then the return-value is the auto-generated gadget number on success.

Remarks

Once the gadget is created, all future created gadgets will be created inside the scroll area. When all the needed gadgets have been created, CloseGadgetList() must be called to return to the previous GadgetList. OpenGadgetList() can be used later to add others gadgets on the fly in the scroll area.

The following functions can be used to act on a ScrollAreaGadget:

GetGadgetAttribute(): With one of the following attribute:
  #PB_ScrollArea_InnerWidth  : Returns the width (in pixels) of the contained scrollable area.
  #PB_ScrollArea_InnerHeight : Returns the height (in pixels) of the contained scrollable area.
  #PB_ScrollArea_X           : Returns the current horizontal scrolling position (in pixels).
  #PB_ScrollArea_Y           : Returns the current vertical scrolling position (in pixels).
  #PB_ScrollArea_ScrollStep  : Returns the current scroll step value (in pixels).
SetGadgetAttribute(): With one of the following attribute:
  #PB_ScrollArea_InnerWidth  : Changes the width (in pixels) of the contained scrollable area.
  #PB_ScrollArea_InnerHeight : Changes the height (in pixels) of the contained scrollable area.
  #PB_ScrollArea_X           : Changes the current horizontal scrolling position (in pixels).
  #PB_ScrollArea_Y           : Changes the current vertical scrolling position (in pixels).
  #PB_ScrollArea_ScrollStep  : Changes the current scroll step value (in pixels).


The following event is supported through EventType():
  #PB_EventType_Resize: The gadget has been resized.
This gadget supports the SetGadgetColor() and GetGadgetColor() functions with the #PB_Gadget_BackColor type to change the background color.

An event is triggered when it's used. See example below.

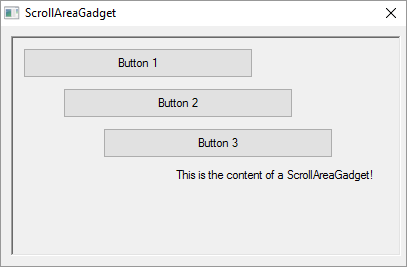

Example

  Procedure BindScrollDatas()
    SetWindowTitle(0, "ScrollAreaGadget " +
                      "(" +
                      GetGadgetAttribute(0, #PB_ScrollArea_X) +
                      "," +
                      GetGadgetAttribute(0, #PB_ScrollArea_Y) +
                      ")" )
  EndProcedure

  If OpenWindow(0, 0, 0, 405, 240, "ScrollAreaGadget", #PB_Window_SystemMenu | #PB_Window_ScreenCentered)
    ScrollAreaGadget(0, 10, 10, 390,220, 575, 555, 30)
      ButtonGadget  (1, 10, 10, 230, 30,"Button 1")
      ButtonGadget  (2, 50, 50, 230, 30,"Button 2")
      ButtonGadget  (3, 90, 90, 230, 30,"Button 3")
      TextGadget    (4,130,130, 230, 20,"This is the content of a ScrollAreaGadget!",#PB_Text_Right)
      CloseGadgetList()

    BindGadgetEvent(0, @ BindScrollDatas())

    Repeat
      Select WaitWindowEvent()
        Case  #PB_Event_CloseWindow
          End
        Case  #PB_Event_Gadget
          Select EventGadget()
            Case 0
              MessageRequester("Info","A Scroll has been used ! (" +
                                      GetGadgetAttribute(0, #PB_ScrollArea_X) +
                                      "," +
                                      GetGadgetAttribute(0, #PB_ScrollArea_Y) +
                                      ")" ,#PB_MessageRequester_Ok)
            Case 1
              MessageRequester("Info","Button 1 was pressed!",#PB_MessageRequester_Ok)
            Case 2
              MessageRequester("Info","Button 2 was pressed!",#PB_MessageRequester_Ok)
            Case 3
              MessageRequester("Info","Button 3 was pressed!",#PB_MessageRequester_Ok)
          EndSelect
      EndSelect
    ForEver
  EndIf

See Also

GetGadgetAttribute(), SetGadgetAttribute(), ScrollBarGadget()

Supported OS

All
